Beiter V-Box Starter Edition

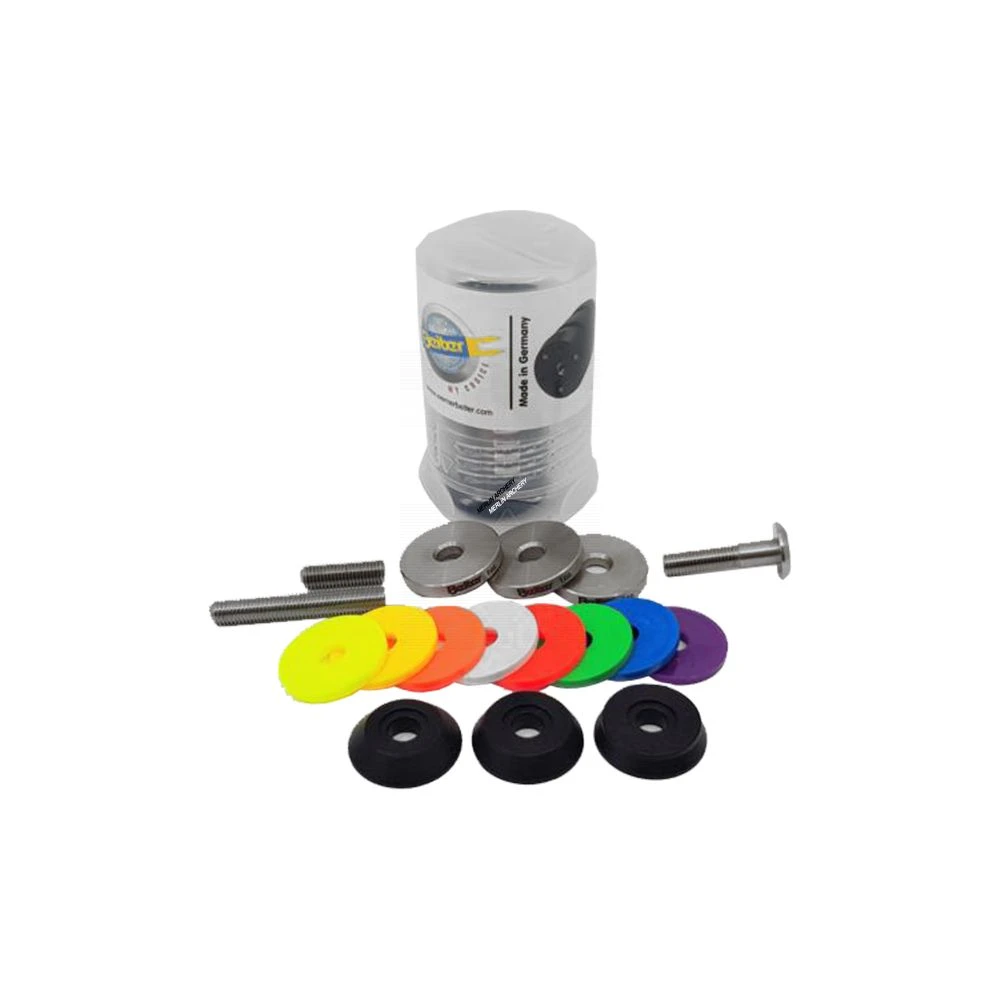

The Beiter V Box Starter Kit:

Perfect to get you set-up with your first Beiter V Box Basic kit!

The Beiter V-BOX is the base of a multifunctional dampening system for stabilizer systems: The Beiter V-BOX ist also available in STEEL or in the COLOUR version.

The stiffness of the V-BOX can be modified with the interchangeable membranes which have different properties. The system is completed by weights and compensation spacers which can be mounted with different screws, threaded studs and adaptors.

Beiter Centralizers can be ordered with 5/16″-24 inner or outer weight adapters at no extra charge. But the V-box is compatible with almost all available stabilizer systems.

On systems using a 5/16 thread, the Beiter V-BOX can be mounted on the standard thread that comes with the stabilizers, while for stabilizers using 1/14 threads, inner and outer thread adaptors to a 5/16″size are available.

How does the Beiter V-BOX system work?
The various stabilizers on the market have different rigidities. Archers may find rods too stiff, and sometimes also too weak. With a multifunctional and customizable dampening system, such as the Beiter V-BOX, each stabilizer can be adapted to the respective shooters needs. This customization is achieved with the membranes and their different degrees of stiffness, and also through the use of the available weights and spacers. This combination can affect not only the weight distribution, but by their inertia, in combination with the Beiter V-BOX, the entire damping behaviour.

Where should, or can, the weight be attached?
Weights can be attached in front of and behind the Beiter V-BOX. The weight of the Beiter V-BOX unit is 1.75 oz – 49grams, the Beiter V-BOX STEEL is 5.10 oz. – 145gram.

As an example at a total weight of 16 ounces, the weight could be distributed like this: 2 x 3 oz weights and 1 x 1 oz weight in front of the V-Box and 3x 3 oz weights behind. If you want to shoot a less stabilizer weight, the distribution of the weights can be adjusted by using the spacers. Due to the lever effect, shifting the weights forward on the screw changes weight distribution and dampening, achieving the desired balance with less weight than usual! Thanks to the combination of weights, washers and membranes in 4 different stiffnesses, innumerable different settings and options are possible.

BEITER V-BOX : An optimal set up will involve placing weights both sides of the V-BOX. #5 and #7 membranes can support max. 10 oz in front of the V-Box. Attention: the #1 membrane supports max. 5 oz.
